Description
This Banjo bulkhead fitting is made of polypropylene and has double sided female NPT threads and is available with EPDM or FKM gasket. They range in size from 1/2 in. to 4 in. and can fit in holes ranging in size from 1-5/8 in. to 5-3/4 in. These fittings are ideal for all types of tanks, drums, and other liquid handling containers and are suited for use with a wide range of liquids including water, chemicals, acids and bases.
Applications
- Water & Wastewater Treatment
- Chemical Processing
- Food & Beverage
- Swimming Pools, Aquariums, & Theme Parks
- Pulp & Paper
- Marine & Corrosive Environments
- Metal Finishing & Plating
- Agriculture & Irrigation
| Size | SKU | Hole Size | Gasket |
|---|---|---|---|

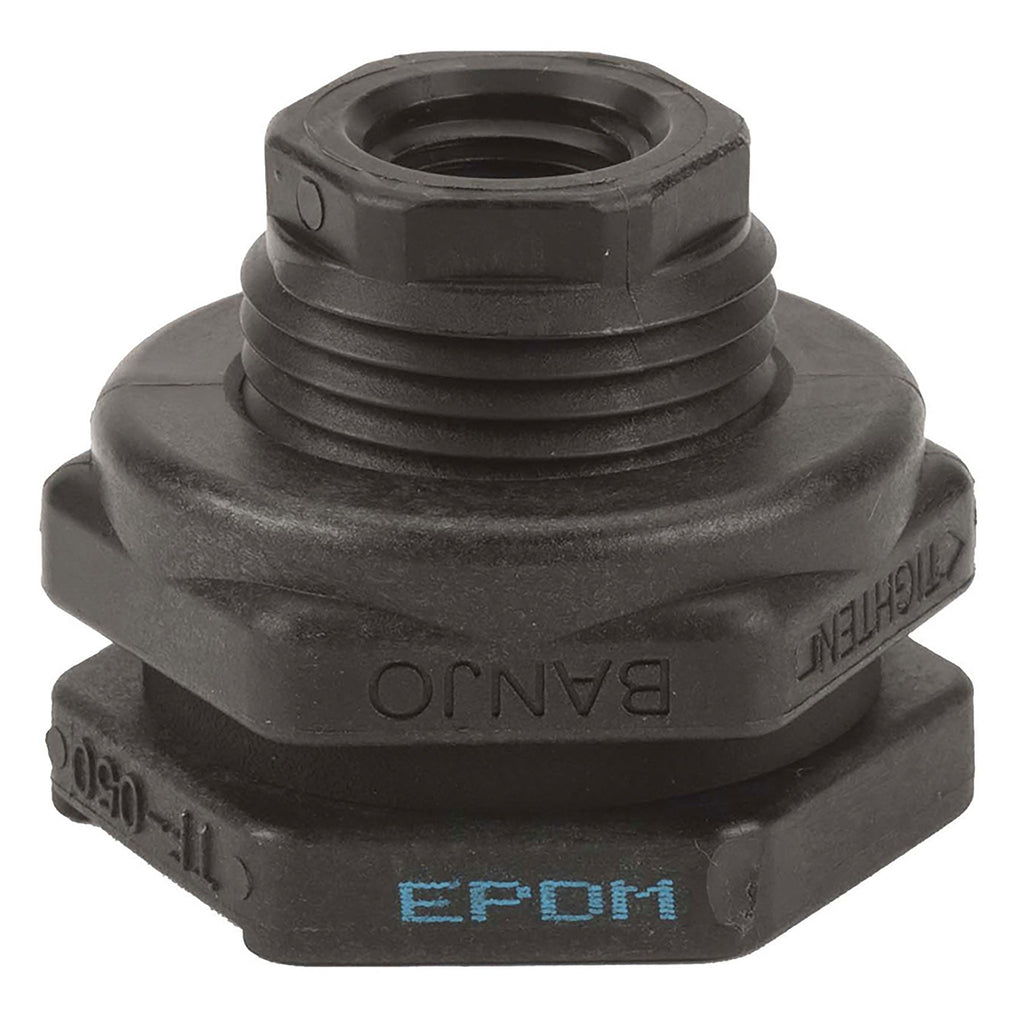

| 1/2" | TF050 | 1-5/8" | EPDM |
| 1/2" | TF050V | 1-5/8" | FKM |

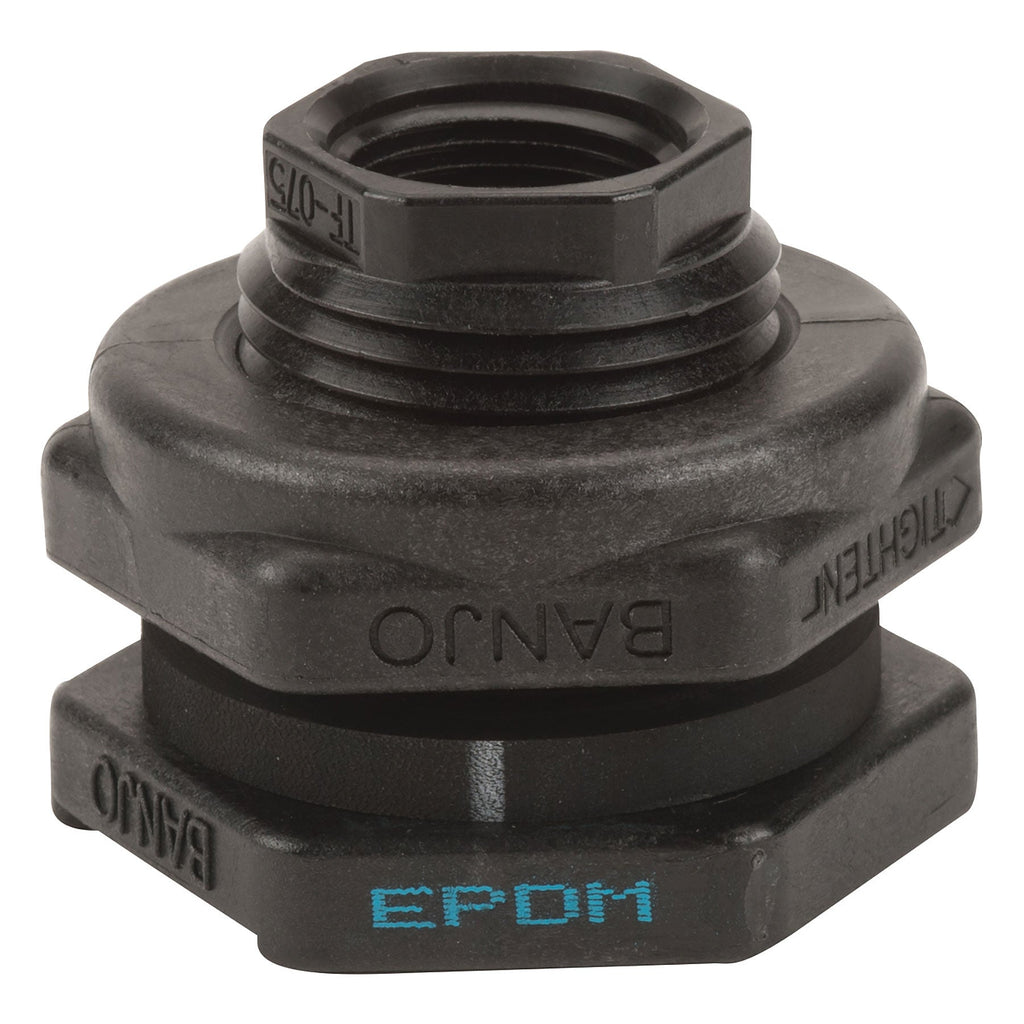

| 3/4" | TF075 | 1-5/8" | EPDM |

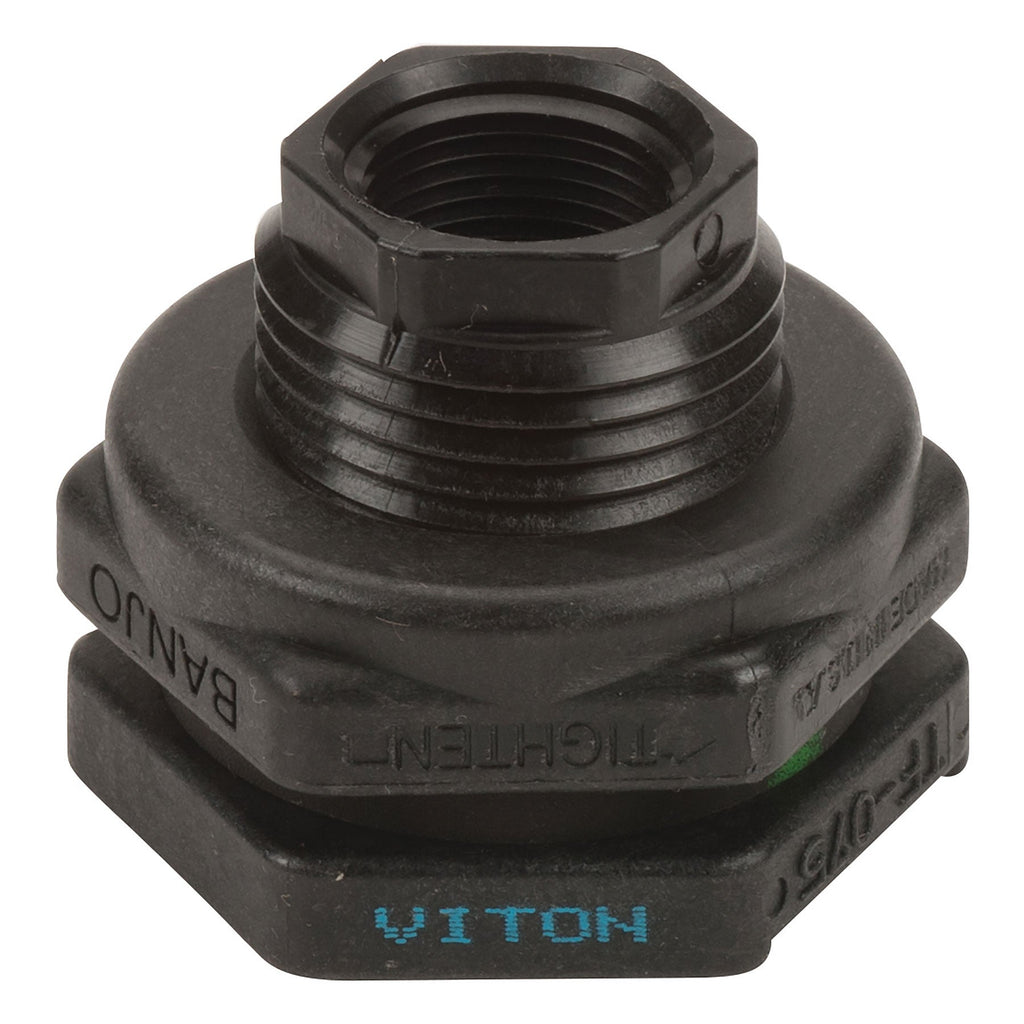

| 3/4" | TF075V | 1-5/8" | FKM |

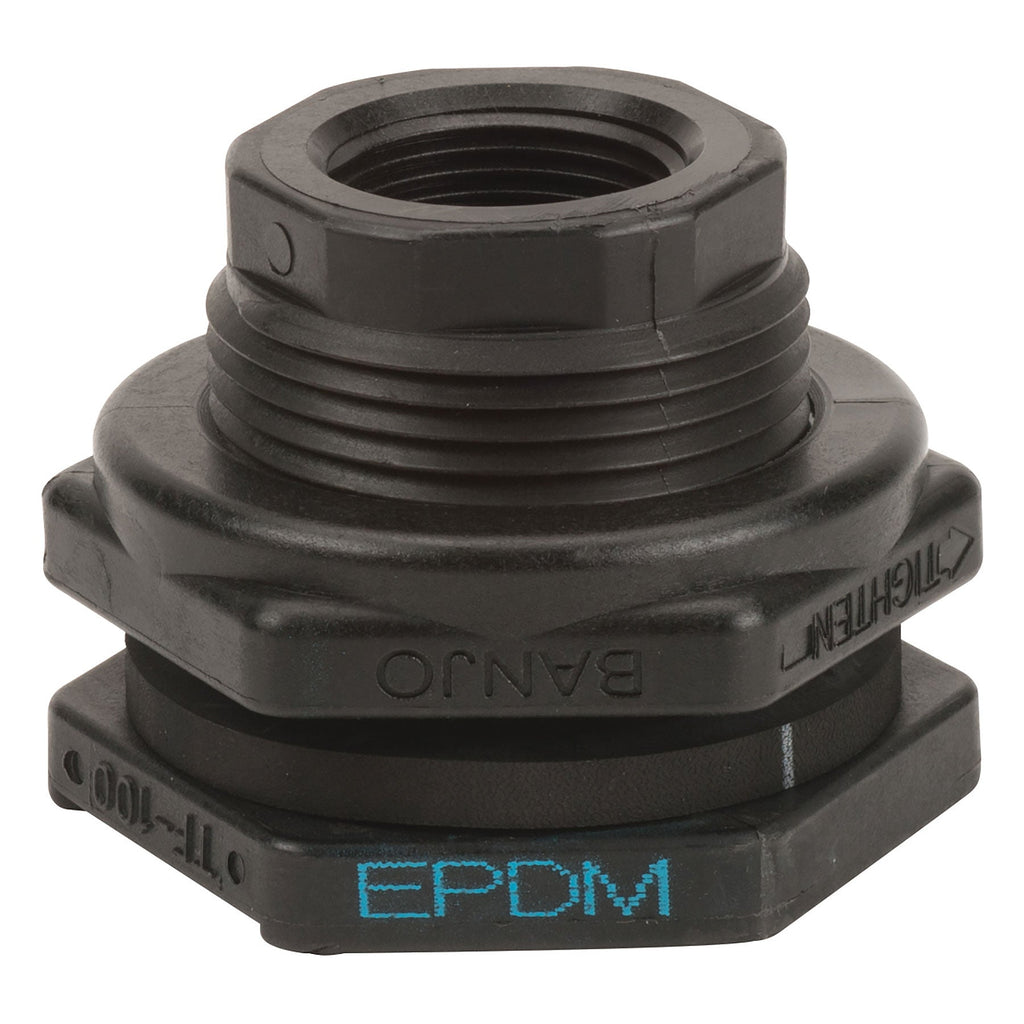

| 1" | TF100 | 2-1/4" | EPDM |

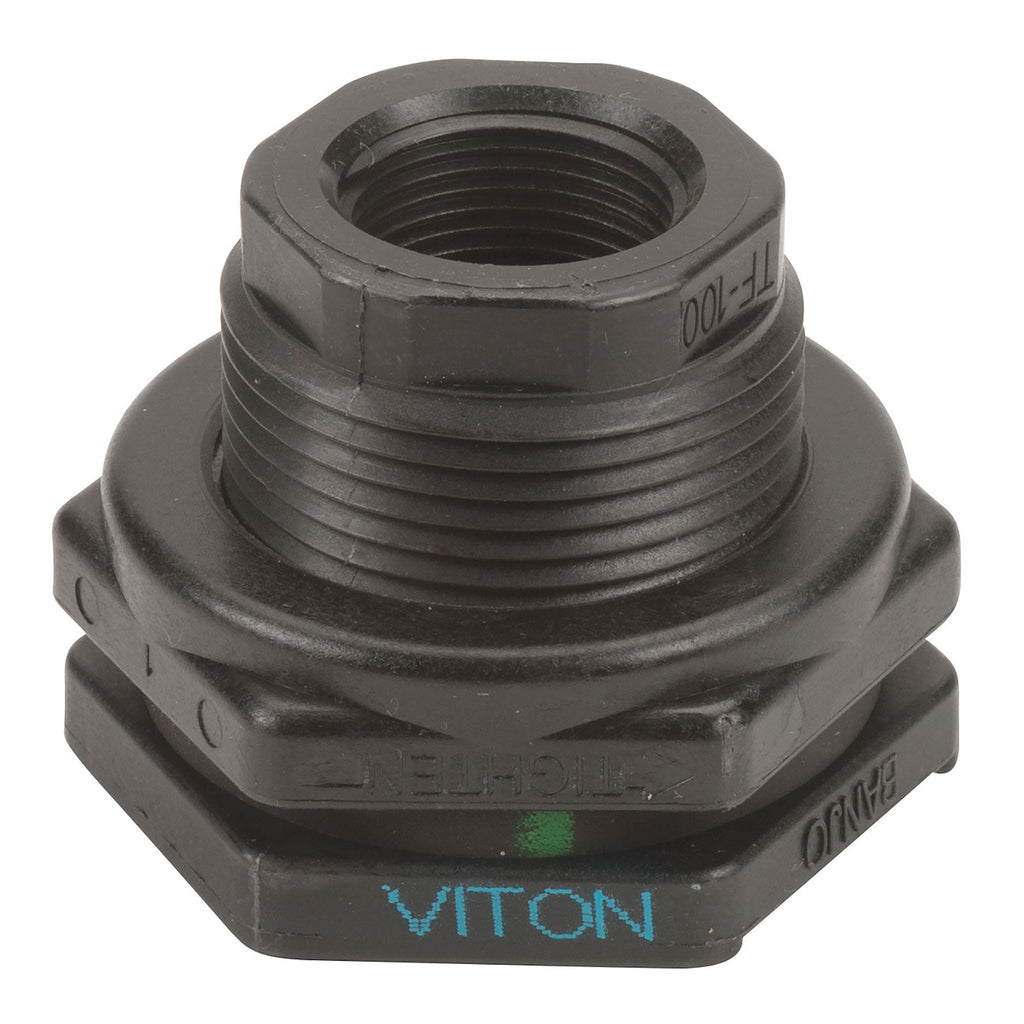

| 1" | TF100V | 2-1/4" | FKM |

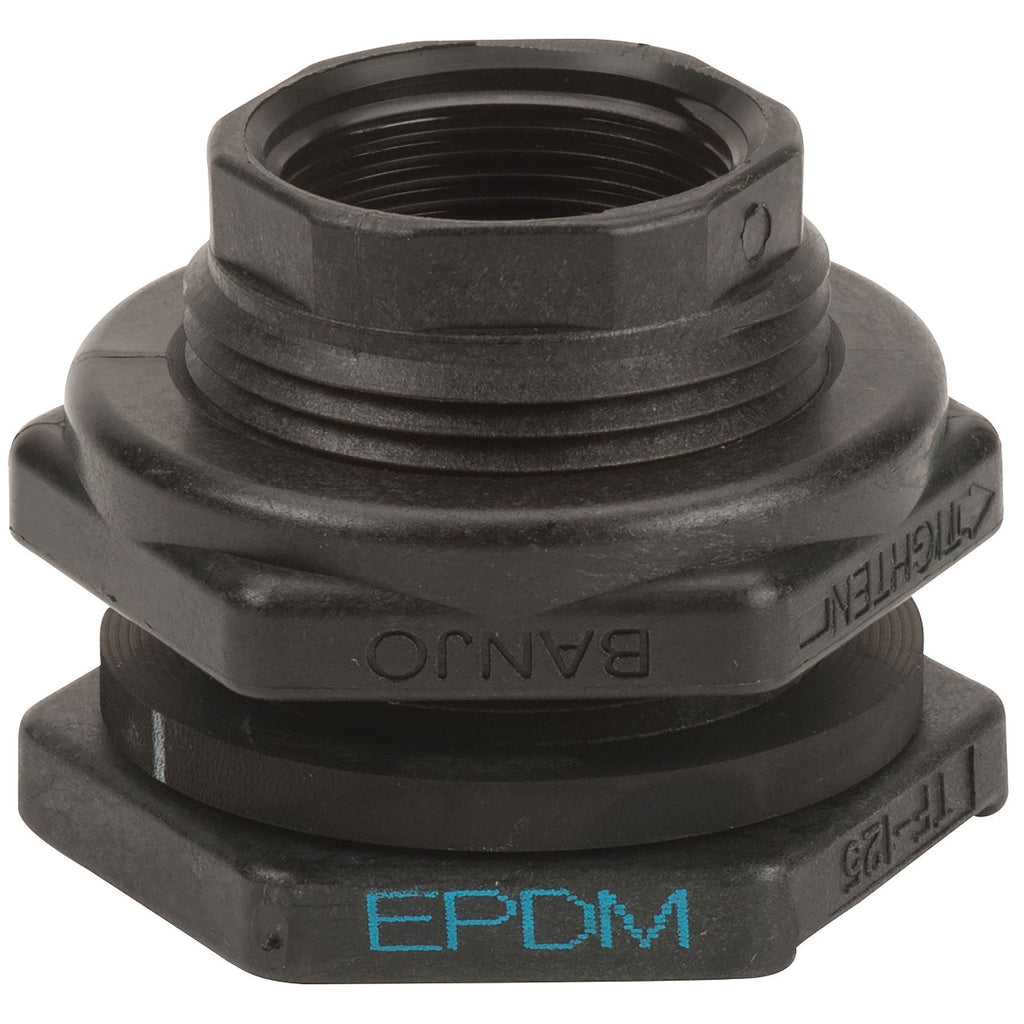

| 1-1/4" | TF125 | 2-1/4" | EPDM |

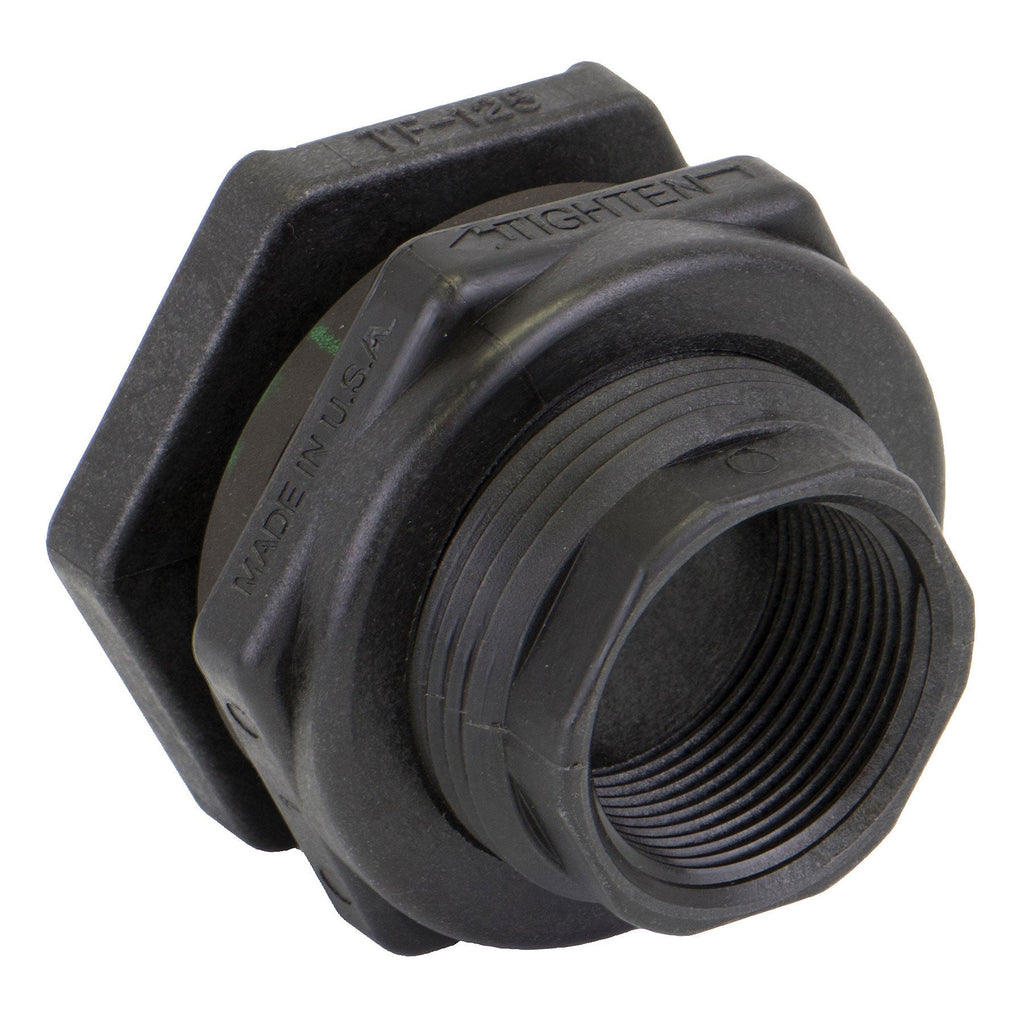

| 1-1/4" | TF125V | 2-1/4" | FKM |

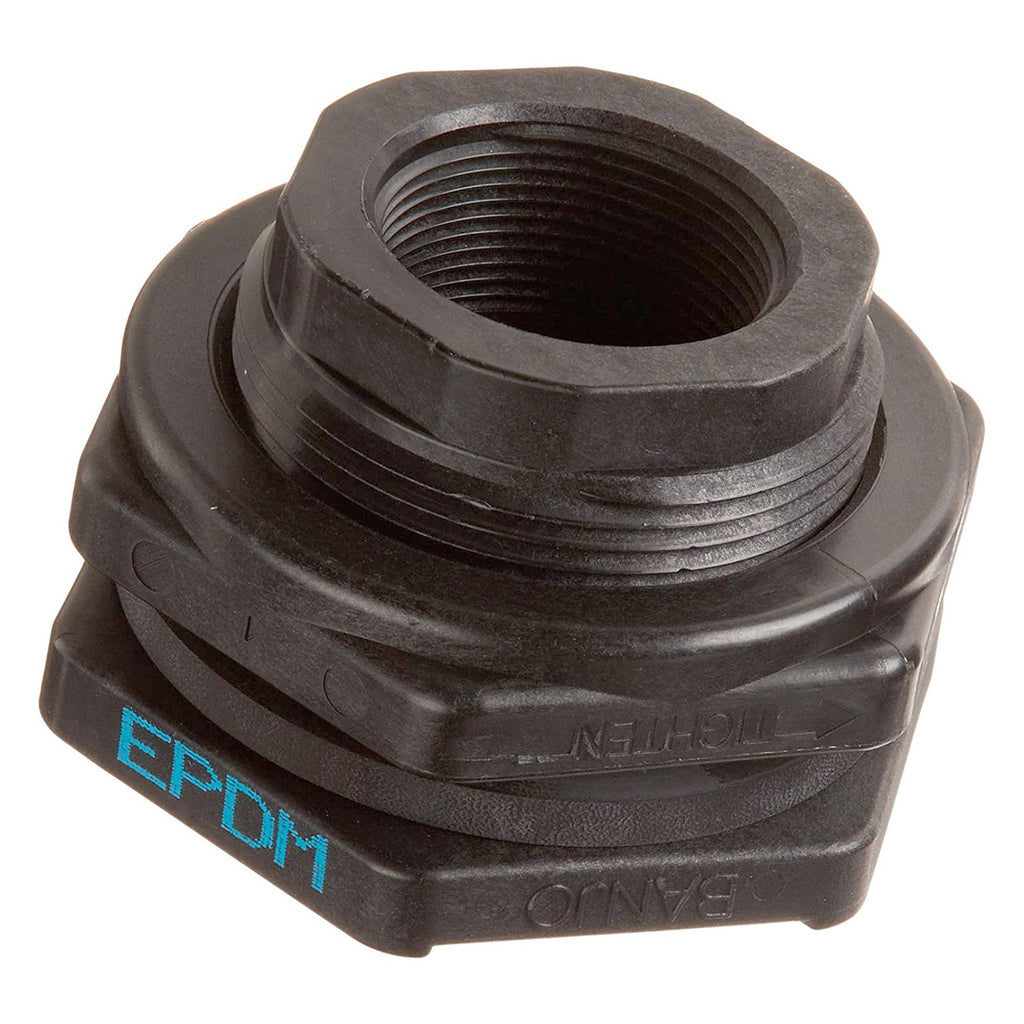

| 1-1/2" | TF150 | 3" | EPDM |

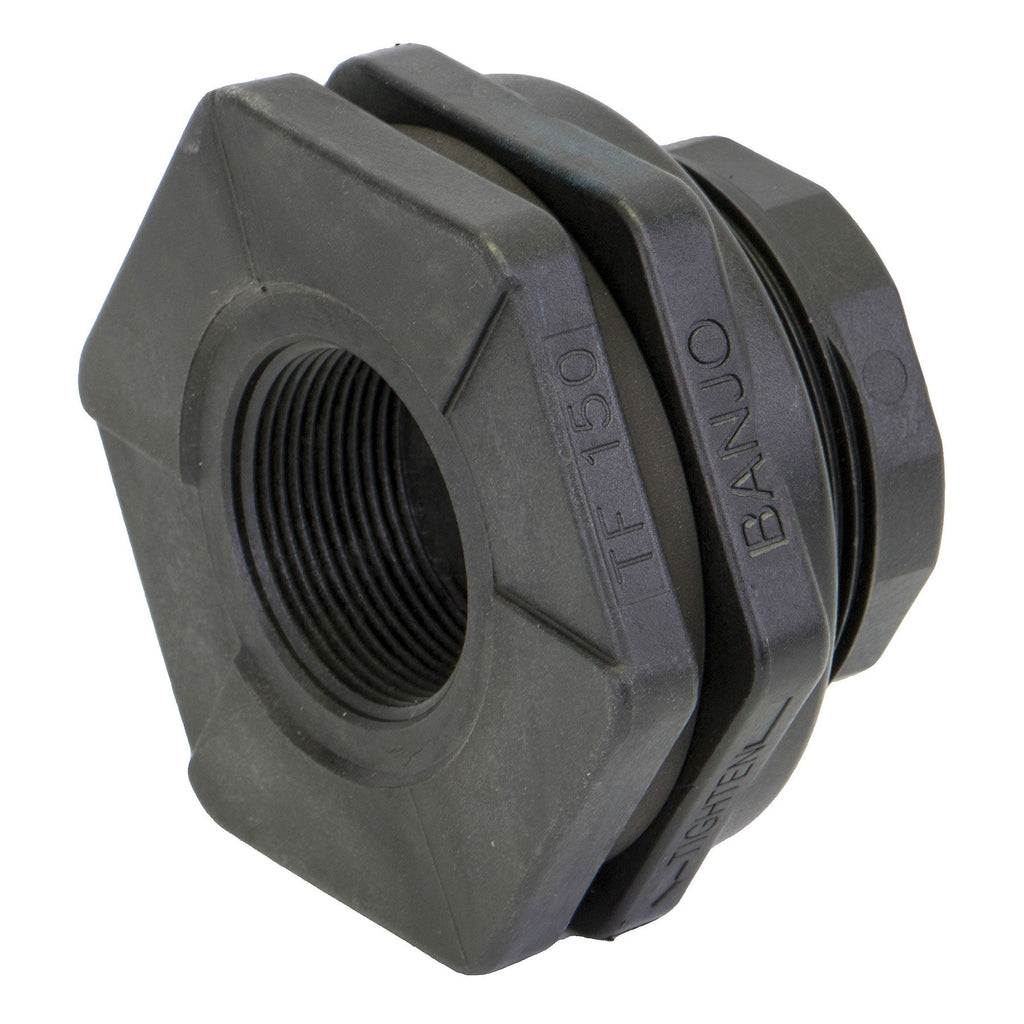

| 1-1/2" | TF150V | 3" | FKM |

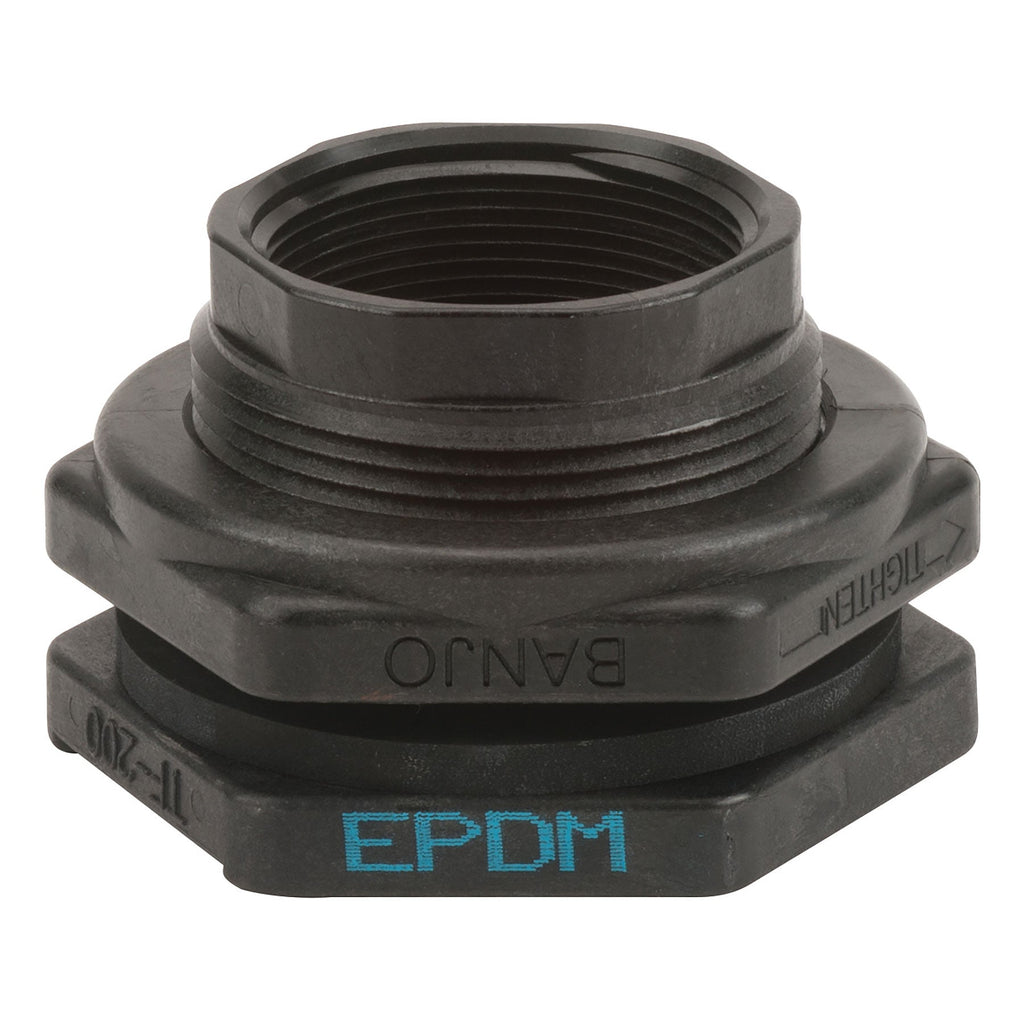

| 2" | TF200 | 3" | EPDM |

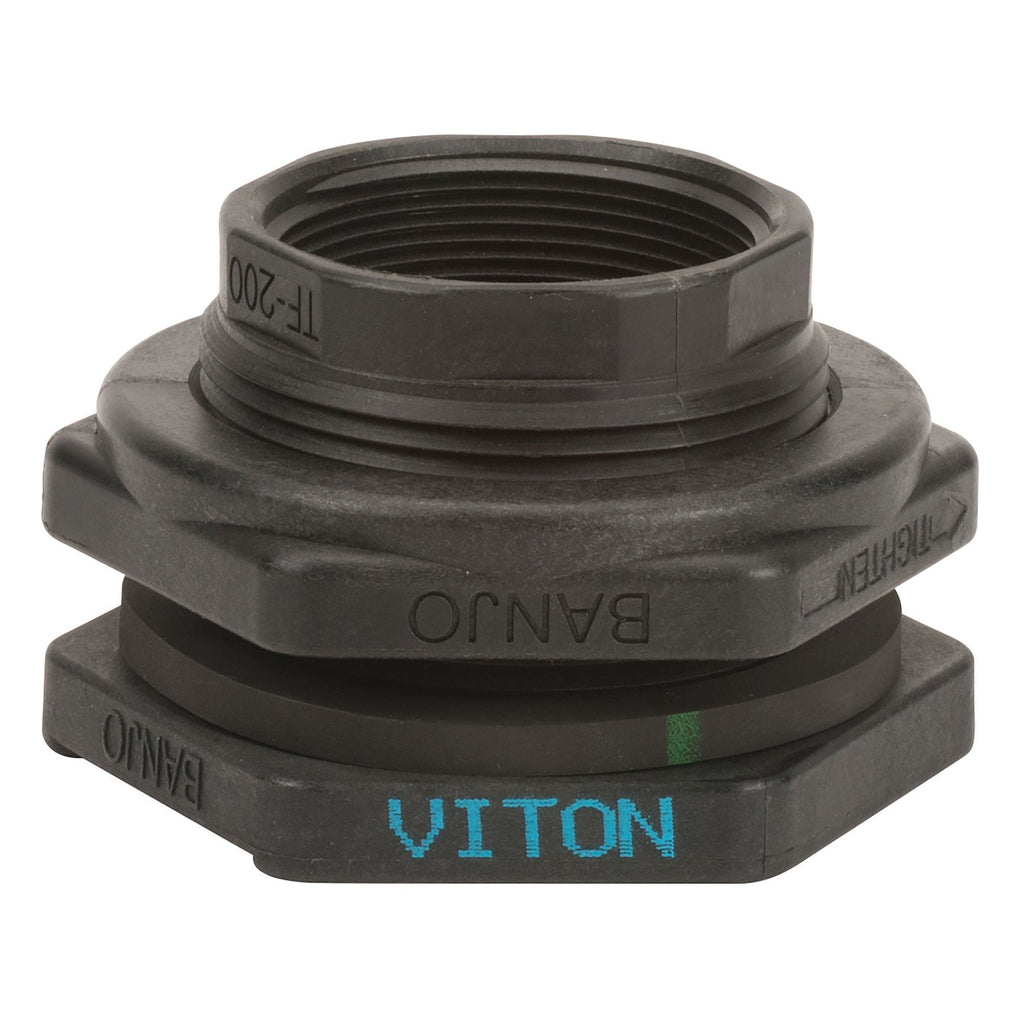

| 2" | TF200V | 3" | FKM |

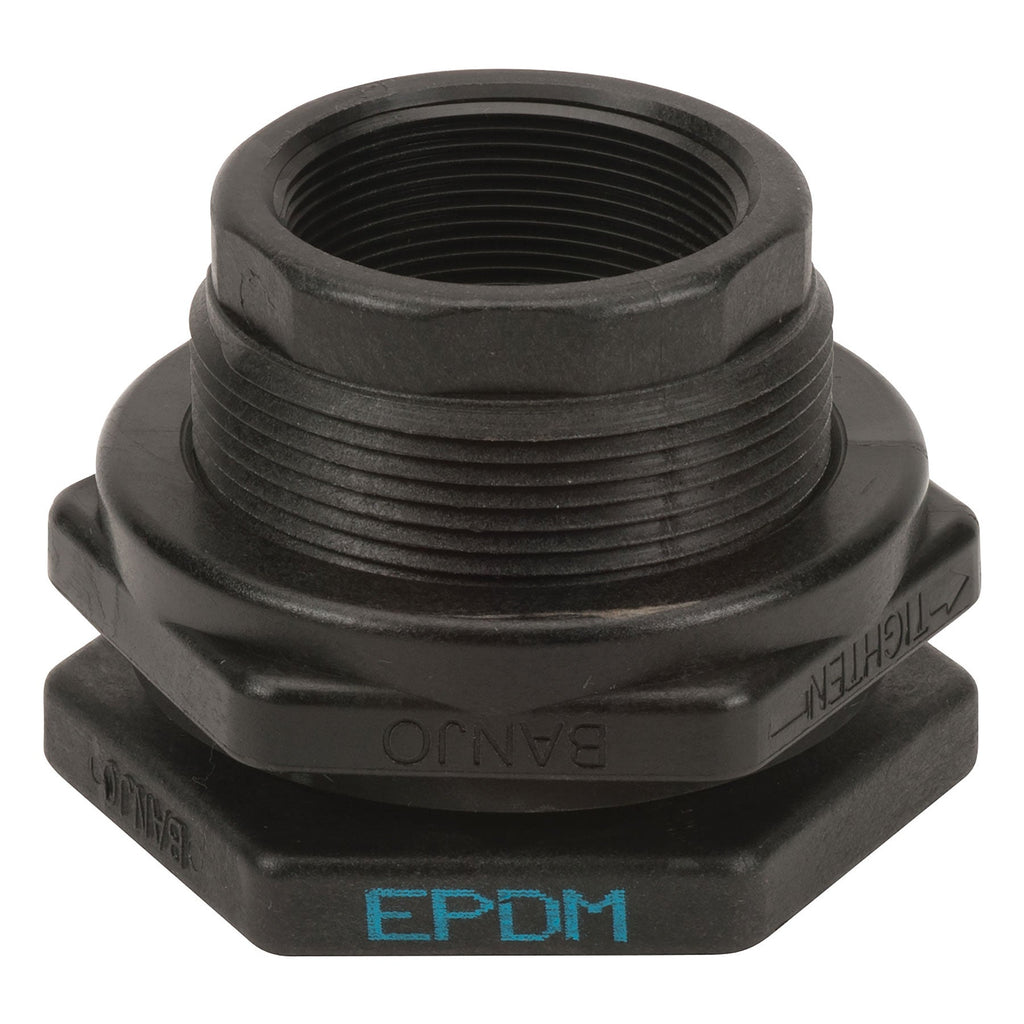

| 2" | TF220 | 3-1/4" | EPDM |

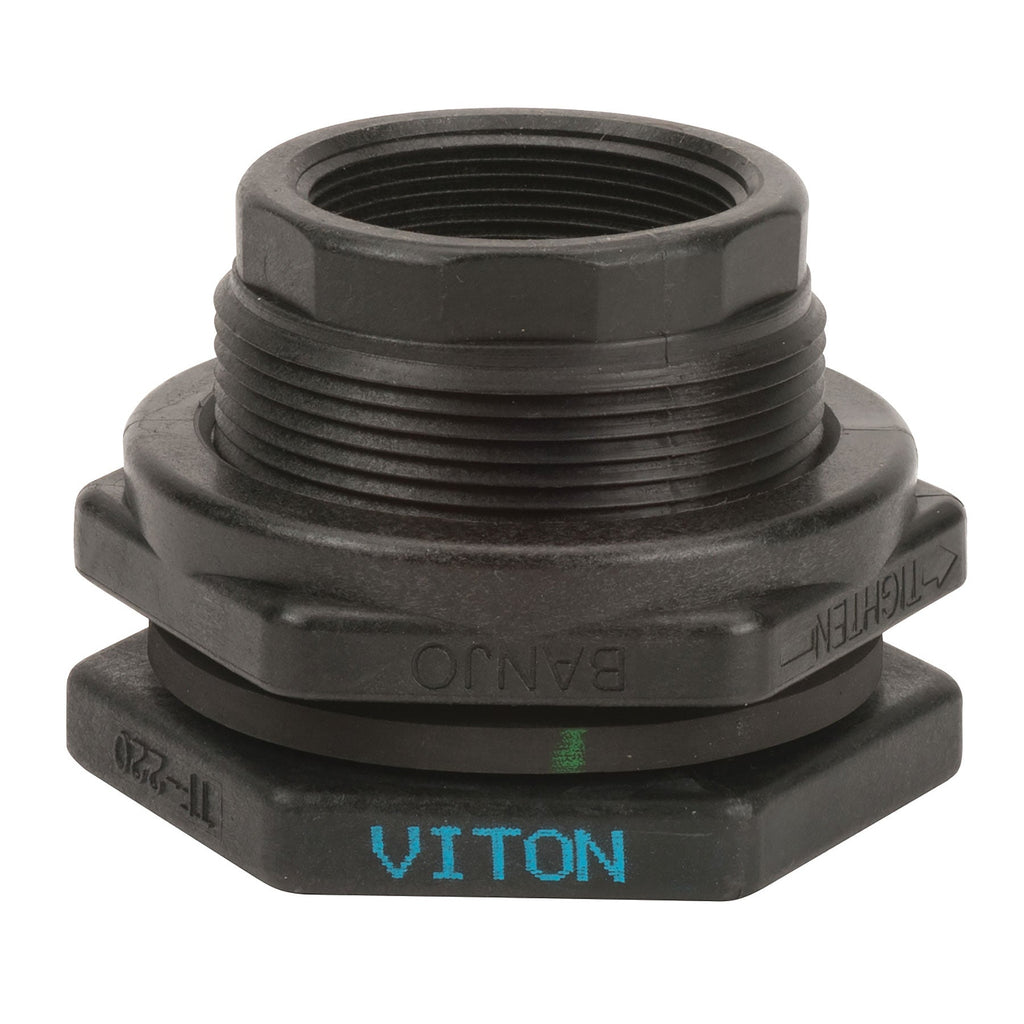

| 2" | TF220V | 3-1/4" | FKM |

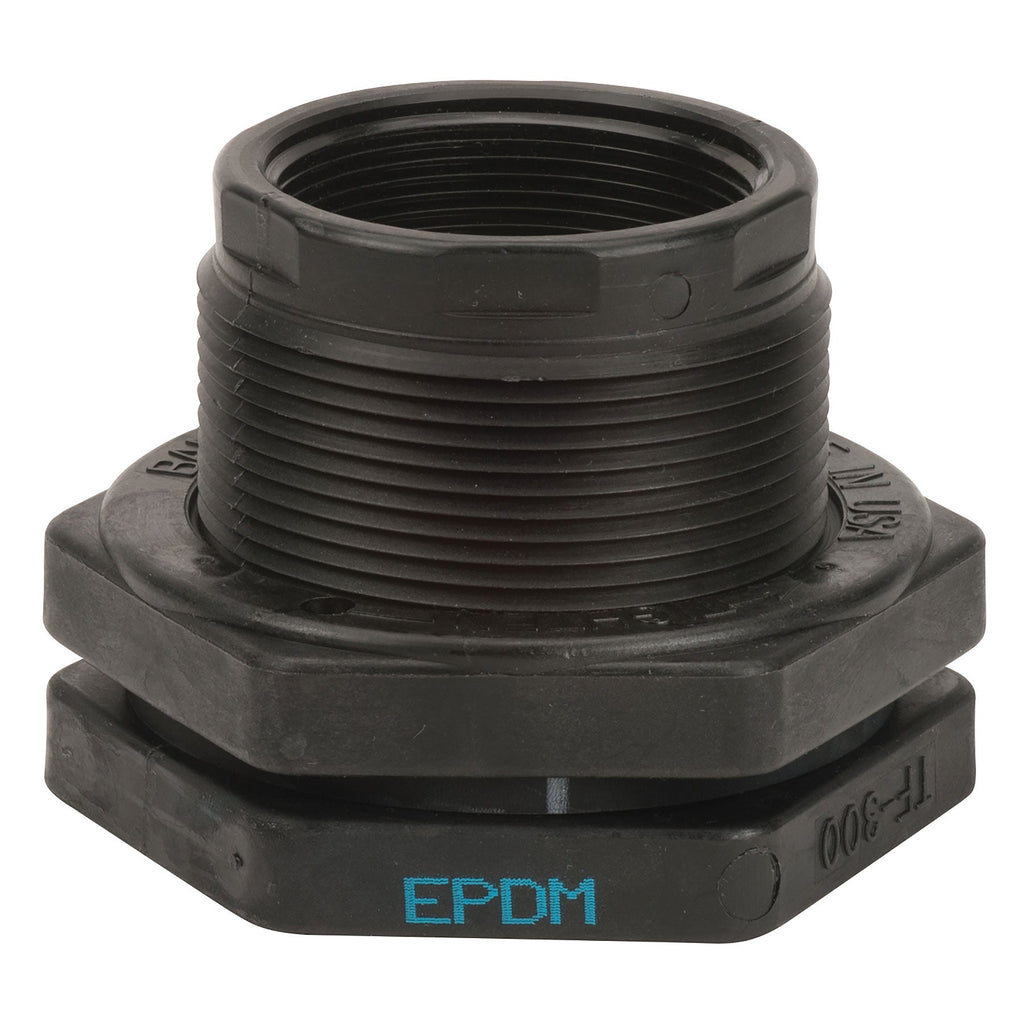

| 3" | TF300 | 4-1/2" | EPDM |
| 3" | TF300V | 4-1/2" | FKM |

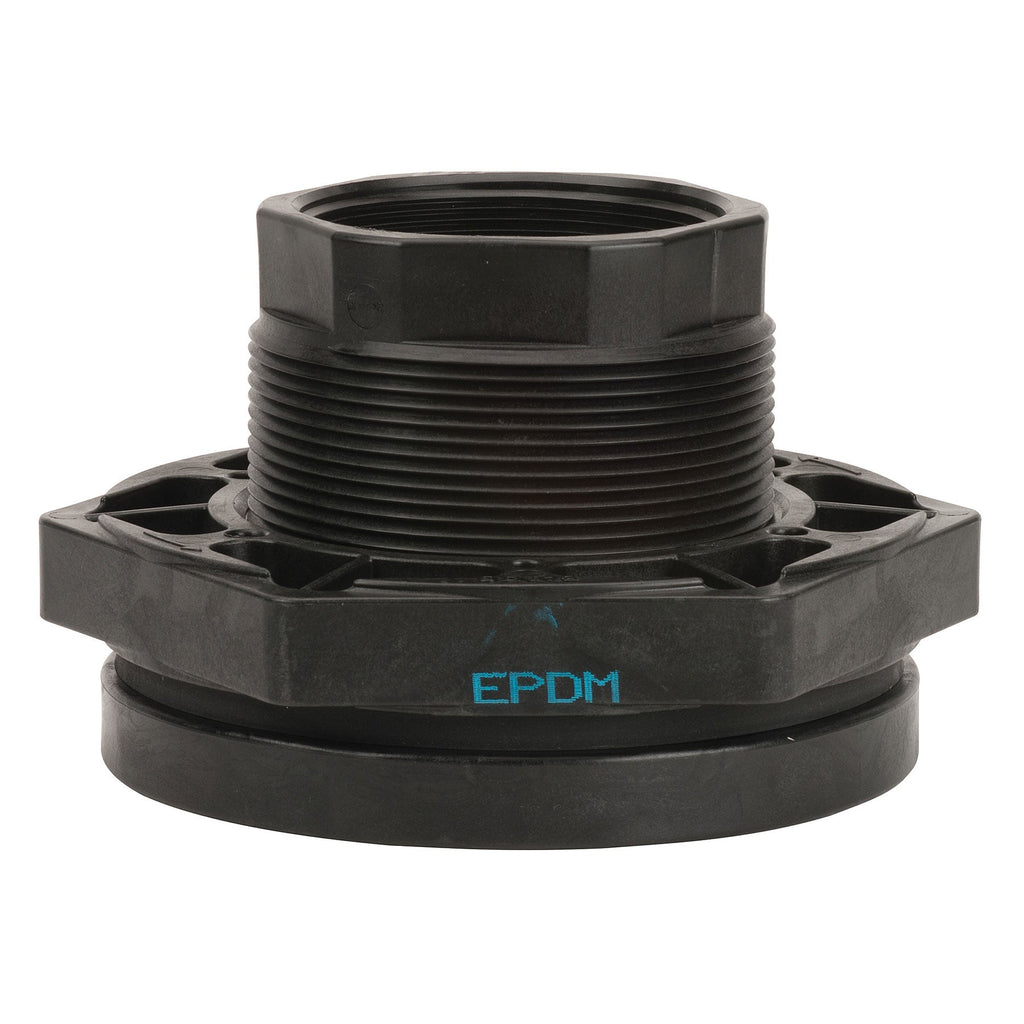

| 4" | TF400 | 5-3/4" | EPDM |

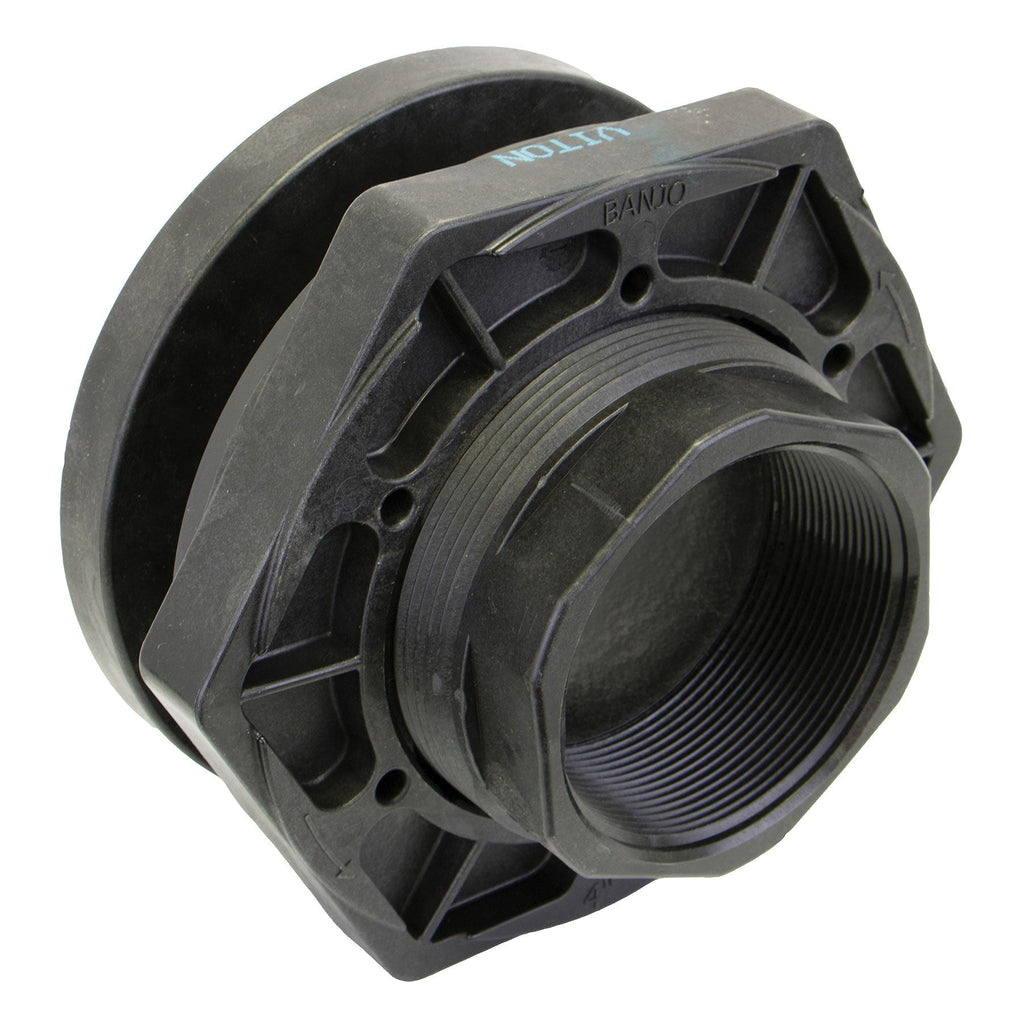

| 4" | TF400V | 5-3/4" | FKM |
Downloads
None available
